Vibrations and Structural Dynamics Test Facility (VSDTF)
Gas Turbine Test Facility (GTTF)
Flight Simulation Test Facilty (FSTF)
Experimental Aerodynamics Test Facility (EATF)

Vibrations and Structural Dynamics Test Facility (VSDTF)

Experimental structural dynamics is a very important subject for certification and modification of aerospace structures. Using the equipment, the dynamic behavior of the structure, in-terms of natural frequencies, mode shapes and damping values are obtained experimentally. These test results would be used to compare, update and fine tune the mathematical model of the structure. Different types of excitations to the structure, such as, impulse excitation using instrumented hammer and forced excitation through electro-dynamic shakers can be applied to get the dynamic properties of the structure.

Objective
Course Contents
Outcome
Training fee and Duration
Contact

WEEK	DAY	CONTENT
WEEK1	DAY 1	Lecture: Introduction to structural dynamics / vibrations
DAY 2	Lecture: Introduction to the structural dynamic testing
DAY 3	Lecture: Introduction to the various equipments used during the test(Accelerometer, vibration generator, power oscillator, charge amplifier, data Acquisition card)
DAY 4	Experiment: Test article mounting techniques and cables connecting procedures
DAY 5	Experiment: Test methods – Impulse testing procedures using Instrumented Hammer
WEEK 2	DAY 6	Experiment: Test data acquisition and storing
DAY 7	Experiment: Data analysis: Introduction to Time data, frequency spectrum, auto spectrum, Cross spectrum, transfer function, real and imaginary plots, impulse response.
DAY 8	Experiment: Impulse test data analysis techniques and results tabulation
DAY 9	Experiment: Vibration testing using electro dynamic shakers, shaker location, force adjustment.
DAY 10	Experiment: Data acquisition and analysis procedures and storing of the results
WEEK 3	DAY 11	Experiment: Conduct of vibration test with different test articles
DAY 12	Experiment: Data acquisition and analysis and comparison with the theoretical predictions
DAY 13	Experiment: Spring Mass System: determine the damping coefficient of a single degree of Freedom system
DAY 14	Experiment: Determination of transmissibility ratio of a vibrating system
DAY 15	Review the above activities and concluding session

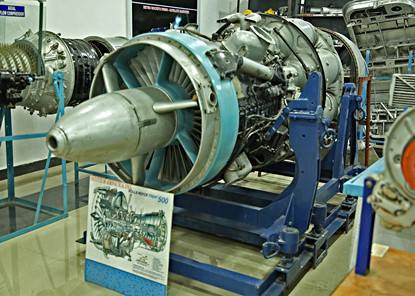

Gas Turbine Test Facility (GTTF)

The purpose of this laboratory exercise is to demonstrate basic turbojet principlesusing actual pressure, temperature, fuel flow and thrust measurements from a small turbojet. Themeasurements available allow for the calculation of component efficiencies,compressor andturbine power, thrust, propulsive and thermal efficiency at various power settings.

Objective
Course Contents
Outcome
Training fee and Duration
Contact

WEEK	DAY	CONTENT
Week 1	Day 1	Lecture: Introduction to Gas Turbine Engines – Turbojet, Turbofan and Turboprop – Working, Component Efficiency etc.
Day 2	I Lecture: Introduction to Mini Gas Turbine – Start, Stop procedure, Individual Components, Explanations
Day 3	Lecture: Introduction to ARMSOFT software and integration of Gas Turbine CM14 & ARMSOFT
Day 4	Experiment: Study of Mini Gas Turbine Engine – Parts, Components, Working and Individual component efficiency
Day 5	Experiment: Starting and Stopping of Mini Gas Turbine
Day 6	Experiment: Engine Startup procedure and Shutting Down
Week 2	Day 7	Introduction to Axial Compressor – Design, Importance, Efficiency
Day 8	Experiment: Calculation of the Mechanical Efficiency of Axial Compressor – Power required, Power Available, Compression Ratio
Day 9	Introduction to Combustion Chamber – Types, Process, Output, Efficiency
Day 10	Experiment: Calculation of Work, Power and Thrust requirement in Gas Turbine – Combustion Power Input, Work Heat relationship
Day 11	Introduction to Axial Turbine – Work Output
Day 12	Experiment: Calculation of total work output of Axial Turbine – Output work necessary, Available output
Week 3	Day 13	Experiment: Calculation of Net Thrust, Specific Thrust and TSFC
Day 14	Experiment: Calculation of Thermal, Propulsive and Overall Efficiency of Turbojet Cycle
Day 15	Experiment: Elucidate T – S, H – S diagrams for the Gas Turbine and Compare efficiencies of non-ideal engine components.

Flight Simulation Test Facilty (FSTF)

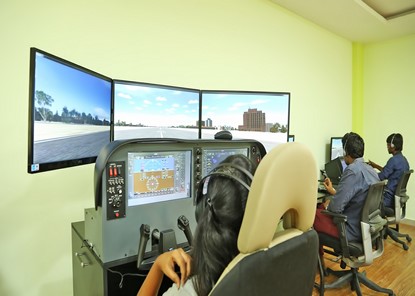

Flight simulation laboratory hosts an engineering simulation based on simulink implementation of the equations of motion. Flight simulation is used for a variety of reasons, including flight training (mainly of pilots), the design and development of the aircraft itself, and research into flight dynamics and handling qualities. The use of flight simulators for training in complex and potentially dangerous situations (e.g. engine failure, systems failure, structural damage etc) is a critically important area in aircraft development.

In addition to the cockpit interfaced simulator, the flight simulation laboratory contains three PC based flight simulator. Of these, one is configured with hardware to simulate fighter type aircraft controls, another is configured to simulate general aviation type aircraft controls, and the third is configured to simulate a glider type aircraft controls. These three simulators have provision to incorporate the dynamics of other aircraft.

Objective
Course Contents
Outcome
Training fee and Duration
Contact

S.No	Day	Content
Week - 1	DAY 1	Lecture: Introduction to flight simulator (Description of equipments used for real flight simulation).
DAY 2	Lecture: Description about different aircraft models. 1) Commercial Aircraft 2) Fighter Aircraft 3) Sail Plane etc...
DAY 3	Lecture: Description of controls used for flying aircraft i.e., connected Yoke and Rudder.
DAY 4	Experiment: Interface between main pilot and co-pilot
DAY 5	Experiment: Performing different mission segments of aircraft. Take off Cruise Co-ordinate Turn Land
DAY 6	Experiment: Description about flight data collection from simulator for different flight operations and Revision.
Week - 2	DAY 7	Lecture: Introduction to combat operations of an aircraft.
DAY 8	Experiment: Performing combat maneuvers like Pull-up, Pull-down, Steady level turn.
DAY 9	Experiment: Interface between main pilot and co-pilot. (In this students(co-pilot) are asked to stabilize the aircraft)
DAY 10	Experiment: Performing different mission segments of aircraft in sequence. Take off Cruise Co-ordinate Turn Pull-up , Pull-down Land
DAY 11	Experiment: Flight data collection from simulator for different flight operations.
DAY 12	Experiment: New design flight simulation

Experimental Aerodynamics Test Facility (EATF)

Aerodynamics is the epicenter of Aeronautical Engineering. Though the wave of Computational tools is still on a climb, Experiments are an irreplaceable tool to understand real world Aerodynamics. Experiments facilitate in understanding the real Physics by conducting tests on geometrically scaled models using the concept of dynamic similarity. Various techniques used in Experimental Aerodynamics include free flight tests, rocket sledge, Para-dropping, scaled model flying, wind tunnel testing.

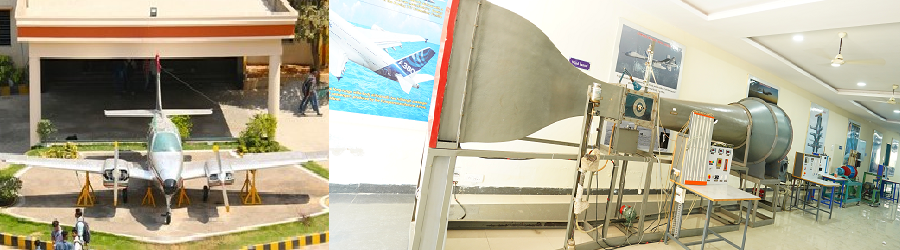

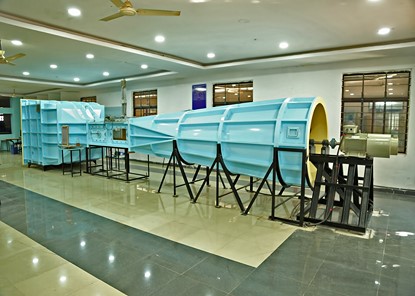

Wind tunnel testing is the most viable and versatile tool to conduct the aerodynamic experiments. Department of Aeronautical Engineering at IARE is in possession of a low speed subsonic wind tunnel and all necessary allied equipment /instruments required for executing a glitch free environment academic research.

Objective
Course Contents
Outcome
Training fee and Duration
Contact

Aeronautical Engineering

Course Catalog

Outcome Based Education (OBE)

Unique @AE

Vibrations and Structural Dynamics Test Facility (VSDTF)

Gas Turbine Test Facility (GTTF)

Flight Simulation Test Facilty (FSTF)

Experimental Aerodynamics Test Facility (EATF)

Contact Us

WEEK	DAY	CONTENT
WEEK1	DAY 1	Lecture: Introduction to importance of experiments in Aerodynamics and various types of aerodynamic experiments
	DAY 2	Lecture: Fundamentals on aerodynamics: Theory, Assumptions, Governing equations, Dynamic Similarity,
	DAY 3	WALK THROUGH of experimental aerodynamic test facility Lecture (in Lab): Introduction to Component wise contribution of wind tunnel and flow quality in the tunnel, estimating the loss factor of various components and estimation of turbulence levels in the test section.
	DAY 4	Lecture: Usage of tools like pitot static tube, manometer (Range and sensitivity of tools) Experiment: Calculating loss factors of each component in the tunnel from measurement of the geometry 2. Calibration of wind tunnel: Usage of pitot static tube and cross validating using air speed indicator over a range of capability of wind tunnel
	DAY 5	Experiment: 3. Estimating the flow quality in the test section using a 2D/3D traverse mechanism 4. Calculation of boundary layer using the boundary layer rake in the test section
WEEK 2	DAY 6	Lecture: Standards and practices in Model Sizing and fabrication.
	DAY 7	Experiment: 5. Flow analysis over a circular cylinder and Cp distribution over the cross section over a range of speeds and plotting manually for one case.
	DAY 8	Lecture/Workshop: Signal & Data Processing using MATLAB Develop a code that takes the input of manometer reading, calculates the Cp, at the pressure taps and fits the curve for Cp & computes Cl, Cd.
	DAY 9	Experiment: 6. Flow analysis over a Sphere and Cp distribution over the cross section over a range of speeds and plotting manually for one case. Assignment: Code development as similar as in the case of circular cylinder
	DAY 10	Analysis on the error in the experiment in comparison with potential theory Experiment: 7. Smoke Visualization of flow over cylinder, sphere, and estimation until which Reynolds number the potential theory fits well, thus reasoning the deviation from potential theory.
WEEK 3	DAY 11	Lecture: Theory of airfoil, assumptions, intricacies in sync to reality
	DAY 12	Experiment: 8. Flow analysis over a symmetrical airfoil, estimation of Cp distribution over the cross section and estimation of Cl & Cd by developing a Mat lab code and comparing with theory.
	DAY 13	Experiment: 9. Flow analysis over a cambered airfoil , estimation of Cp distribution over the cross section and estimation of Cl & Cdby developing a Mat lab code and comparing with theory.
	DAY 14	Experiment: 10. Evaluation of Cl & Cd for a symmetrical airfoil & cambered airfoil using 6 axis strain gauge balance over a wide range of angle of attack and at different speeds and fit the curve using Mat lab
	DAY 15	Experiment: 11. Flight Demonstration and estimation aircraft loads while takeoff, climb, cruise & landing with help of an R/C aircraft model mounted on 6-axis strain gauge balance.
